Merlo MPR25 MPR30 Diagnostic, Hydraulic Electrical Diagram EN DE
Size: 60.0 MB
Format: PDF
Language: German
Brand: Merlo
Type of Machine: Telescopic Handler
Type of Manual: Diagnostic, Hydraulic Electrical Diagram
Model:
Merlo Telescopic Handler MPR25
Merlo Telescopic Handler MPR30
INHALT:

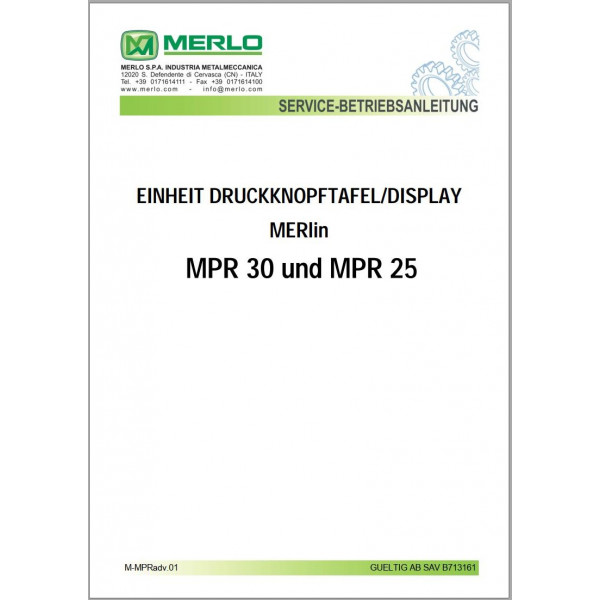

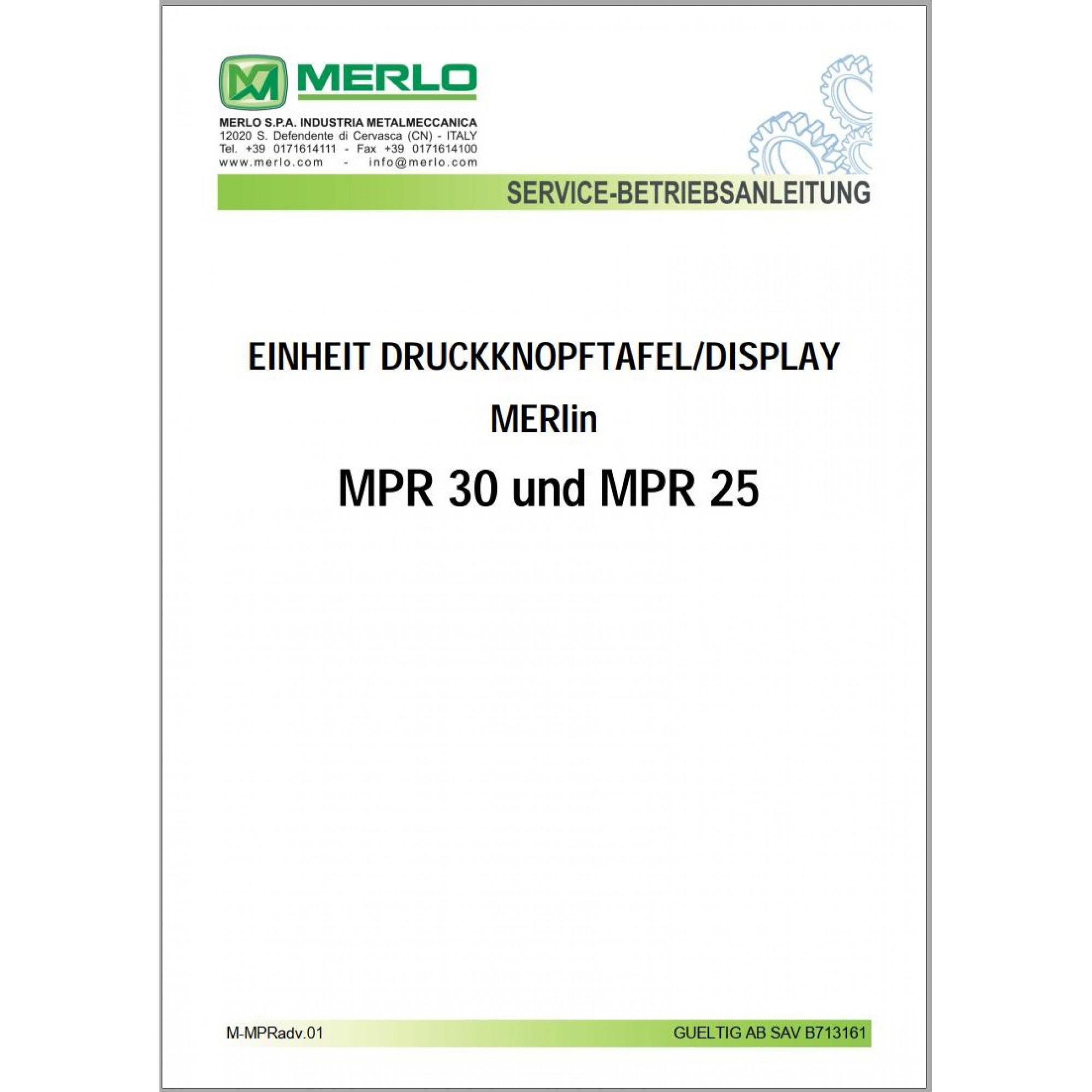

Diagnose MERlin MPR25-30 ab SAV B713161 (M-MPRadv-01).pdf
diagnostic MERlin MPR25-30 from SAV B713161 (M-MPRadv-01).pdf
Elektrofunktionsschema MPR25-30 (40122_3c).pdf
Elektrofunktionsschema MPR25-30 (40122_3d).pdf
Fehlermeldungen MPR25-30 2007.pdf
Hydraulikschema MPR30 (42646_1).pdf
Hydrostatschema MPR25-MPR30 (43351_2).pdf
CONTENTS:
diagnostic MERlin MPR25-30 from SAV B713161 (M-MPRadv-01).pdf
diagnostic MERlin MPR25-30 from SAV B713161 (M-MPRadv-01).pdf
Electro-functional diagram MPR25-30 (40122_3c).pdf
Electrical function diagram MPR25-30 (40122_3d).pdf
Error messages MPR25-30 2007.pdf
Hydraulic diagram MPR30 (42646_1).pdf
Hydrostatic diagram MPR25-MPR30 (43351_2).pdf
